FLIR K2 termokamera ugunsdzēsējiem
#FL_K2
€1208.79
€1813.79
Apraksts:

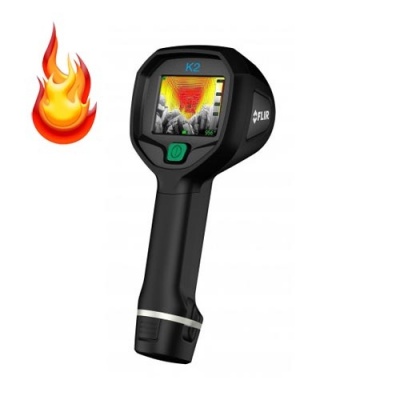

FLIR K2 TIC with MSX®
| Model | K2 |
| Imaging and optical data | |
|---|---|
| IR resolution | 160 × 120 pixels |
| Thermal sensitivity/NETD | < 100 mK @ +30°C (+86°F) |
| Field of view (FOV) / focus | 47° × 35° |
| Image frequency | 9 Hz |
| Focal Plane Array (FPA) / Spectral range | Uncooled microbolometer / 7.5–13 µm |
| Start-up time | < 30 sec. (IR-image, no GUI) |
| Start-up time from sleep mode | < 10 sec. |
| F-number | 1,1 |
| Visual camera | |
| Built-in digital camera | 640 × 480 pixels |
| Digital camera, FOV | 73° × 61°, adapts to the IR lens |
| Sensitivity | Minimum 10 lux |
| Image presentation | |
| Display | 3 in. LCD, 320 × 240 pixels, backlit |
| Image modes – switchable using FLIR Tools software | TI Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode |
| Auto-range | Auto, non-selectable |
| Measurement | |
| Object temperature range | –20°C to +150°C (–4°F to +302°F) 0°C to +500°C (+32°F to +932°F) |
| Accuracy | ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| Measurement analysis | |
| Spotmeter | 1 |
| Isotherm | Yes |
| Automatic heat detection | Heat detection mode (the hottest 20% of the scene is colorized) |
| Data communication interfaces | |
| Interfaces | Update from PC and Mac devices |
| USB | USB Micro-B |
| Power system | |
| Battery | Li Ion, 4 hours operating time |
| Charging system | Outboard single bay charger included + in-camera charging via USB |
| Charging time | 2.5 h to 90% capacity, charging status indicated by LEDs |
| Charging temperature | 0 °C to +45 °C / 32 °F to 113 °F |
| Environmental data | |
| Designed to meet NFPA 1801 specification | Vibration, impact acceleration resistance, corrosion, viewing surface abrasion, heat resistance, heat and flame, product label durability |
| Operating temperature range | –20°C to +55°C (–4°F to +131°F) +85°C (+185°F): 15 minutes +150°C (+302°F): 10 minutes +260°C (+500°F): 3 minutes |
| Storage temperature range | –40°C to +70°C (–40°F to +158°F) |
| Encapsulation | IP 67 (IEC 60529) |
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| Physical data | |
| Camera weight, incl. battery | 0.7 kg (1.54 lb.) |
| Camera size (L × W × H) | 250 × 105 × 90 mm (9.8 × 4.1 × 3.5 in.) |
| Tripod mounting | UNC ¼”-20 |
| Packaging | |
| Packaging, contents | Infrared camera, battery (2 ea.), battery charger, lanyard strap, power supply, printed documentation, USB cable, user documentation CD-ROM |
