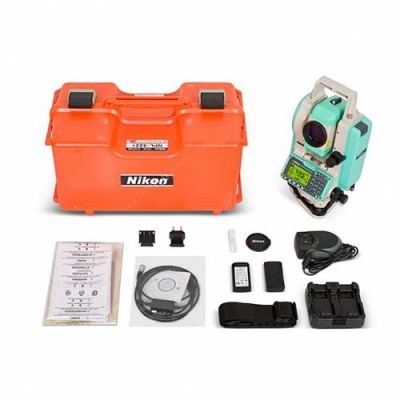

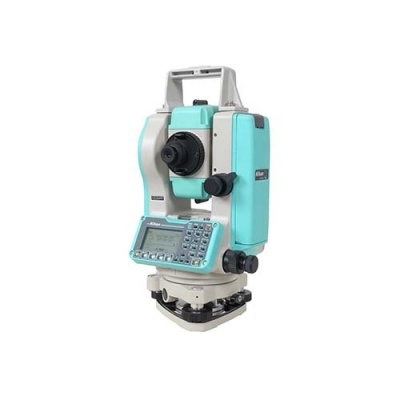

Nikon NPL 322+ 5" bezreflektora tahimetrs
#N_322-5
€5566.00
Apraksts:
Visi instrumenti pirms pārdošanas tiek pārbaudīti un kalibrēti, kā arī uz gadu tiek izsniegta pārbaudes uzlīme.
|
General
|
|
| Weight | 11 lbs (5 kg) |
| Dimensions | 6.6" L x 6.8" W x 13.1" H (16.8 cm x 17.3 cm x 35.5 cm) |
| Warranty | 2-year |
| Protection Class | IP54 dustproof and water splash resistant |
| Tripod Thread | 5/8-11 |
| Auto Shut Off | No |
| Internal Memory | 50,000 points |
| Software | Built-in Nikon survey software |
| Tribrach | Fixed |
| Auto-Tracking Speed | No |
| Guide Light | No |
|
Angle Measurement
|
|
| Measuring Method/Reading System | Incremental encoder |
| Detection Method | Photoelectric |
| Minimum Reading | 1 second/ 5 second/ 10 second |
| Accuracy | 2 second (HQA46500); 5 second (HQA46580) |
| Diameter of Circle | 3.46-inch (88 mm) |
| Display Method | No |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | ±(2+2 ppm × D) mm |
| Minimum Reading | Up to 656 ft. (200 m) |
|
Tilt Sensor/Compensator
|
|
| Range | ±3' |
| Type | Dual-axis |
| Method | Liquid-electric detection |
| Setting Accuracy | 1 arcsec |
|
Battery/Power
|
|
| Power Source | 2 × Li-ion rechargeable batteries |
| Battery Life | Up to 4.5 hours (continuous distance/angle measurement); Up to 11 hours (distance/angle measurement every 30 seconds) |
| Battery Life Alert | Yes |
| Voltage | 3.8-volt DC |
|
Optical Plummet
|
|
| Image | Erect |
| Magnification | 3x |
| Field of View | 5° |
| Focus Range | 1.6 ft. (0.5 m) to infinity |
|
Level
|
|
| Plate/Tubular Bubble Vial | 30 second (2 mm) |
| Circular Bubble Vial | 10 minutes (2 mm) |
| Electronic Level | No |
|
Telescope
|
|
| Length of Tube | 4.9 in (125 mm) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.77 in (45 mm) |
| Magnification | 30x |
| Field of View | 1°20' |
| Resolving Power | 3" |
| Minimum Focus Distance | 4.9 ft. (1.5 m) |
| Ratio of Stadia Lines | No |
| Sight Distance Precision/Focus Range | No |
| Reticle Illumination | No |
| Reflectorless | Yes |
| Quick Sights (Rough Sights) | No |
|
Display and Keypad
|
|
| Type | LCD display |
| Sides | Single |
| Keys | Full numeric keypads |
| Touchscreen | No |
| Backlight | Yes |
| Pixels | 128 × 64 pixels |
|
Temperature
|
|
| Operating | -4 °F to +122 °F (-20 °C to +50 °C ) |
| Storage | No |
|
Applications
|
|
| Surveying and Construction | Yes |
| Mapping and GIS (geographic information systems) | Yes |
| Utilities | Yes |
| Environment Studies | Yes |
| Geomarking | Yes |
| Archaeology | Yes |
| Accident Reconstruction | Yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | Up to 9,840 ft. (3,000 m) |
| Triple Prism | No |
| No Prism | Up to 656 ft. (200 m) |
| Mini Prism | No |
| Reflective Tape | No |
| Reflector Sheet | Up to 787 ft. (239 m) |
| Cat Eye/Flat Prism | No |
| 360 Degree Prism | No |
|
Functions
|
|
| Coordinate Measurement Point | Yes |
| Angle and Distance Stake Out | Yes |
| Stake Out Line | Yes |
| Offsets | Yes |
| Missing Line | Yes |
| Remote Elevation | Yes |
| Resection | Yes |
| Area Calculation | Yes |
| Real-Time Video Imaging | No |
|
Measurement Time
|
|
| Fine | 1.1 seconds (precise) |
| Rapid | 0.8 seconds |
| Tracking | No |
|
Laser Plummet
|
|
| Accuracy | No |
| Class | No |
| Wavelength | No |
|
Laser Pointer
|
|
| Class | Class 2/ IEC60825-1:2007 |
| Accuracy | No |
| Reflectorless range | No |
| Wavelength | No |
| Range to reflective tape | No |
| Range to glass prism | No |
|
Interface
|
|
| Bluetooth | Integrated Bluetooth |
| USB | No |
| Pin Port | RS-232C |
| Operating System | No |
|
RC-PR5 Remote Control System
|
|
| Operating Range | N/A |
| Measuring Time | N/A |
|
Auto-pointing
|
|
| One AP Prism | No |
| Reflective Sheet | No |
| 360 Degree Prism | No |
| Mini Prism | No |
